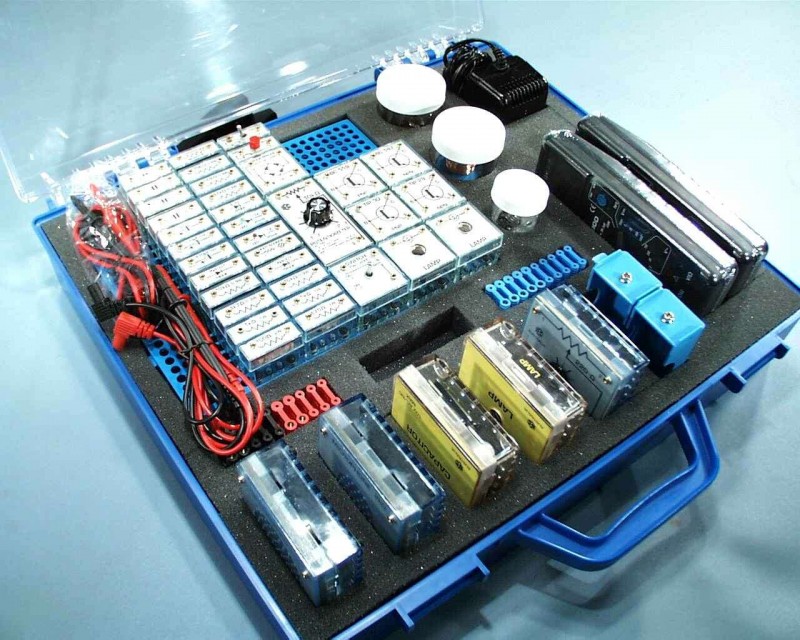

In its standard form, the kit contains both battery holders and an AC low voltage Plug Pack and meters for measurements.

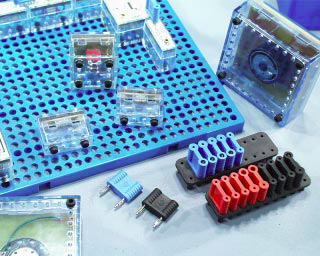

Components are contained in strong transparent plastic housings and each is easily visible to help students recognise electronic devices. Smaller components are contained in strong transparent vials with screw top lids. The kit comes complete with a set of connecting links and cables with good quality stackable banana plugs moulded to the cables. The excellent digital meters provided are for both AC and DC, including capacitance measuring ranges.
The standard components are:
1 Mains Plug Pack for 12V.AC. at 1 amp
2 Cell holders for ‘D’ sized cells
1 Voltage regulator module for smoothly
adjustable DC voltage 1 to 12V.DC. at 1 amp
1 Signal Generator module for sine & square
waves from 0.1Hz to 10kHz at 0.1 amp.
1 Speaker for emitting sounds
1 Microphone for speech and sound
2 Digital multimeters with DC & AC ranges
30 jumper links in red, blue, black & yellow
15 jumper cables with 2mm stackable plugs
6 jumper cables with 4mm stackable plugs
1 Potentiometer, 220 ohm, 3W
1 Potentiometer, 10k ohm, 0.5W
Resistors, in housings: 2x 100 ohm, 1x 470 ohm,
2x 1k ohm, 1x 4k7 ohm, 2x 10k ohm, 1x 47k ohm,
2x 100k ohm, 1x 470k ohm.
Capacitors in housings: 2x 0.1uF, 1x 0.47uF,
1x 1.0uF, 1x 10uF bipolar, 2x 100uF electro,
1x 470uF electro, 1x 1000uF electro.
2 Diodes, 1 amp in housings
1 Zener diode, 6.2V in housing
1 Bridge rectifier in housing
3 Small signal transistors, 2 NPN, 1 PNP
2 Power transistors, 1 NPN, 1 PNP.
2 Lamp holders, in housings
1 Switch, single pole, one way, in housing
1 Switch, single pole, two way, in housing
1 Switch, press button
1 LED white light source
1 Light sensitive resistor (LDR)
1 Heat sensitive resistor (NTC)
3 LEDs, 1 red, 1 green, 1 yellow
1 Connector box for alligator clips
10 MES lamps for small currents
4 Alligator clips to fit to banana plugs
4 Alligator clips fitted with banana plugs
2 Conductivity plates, stainless steel
