Komplet Induksioni (EM023)

Kompleti i ri i Induksionit është krijuar posaçërisht për përdorim nga nxënësit për të studiuar induksionin elektromagnetik, DC dhe AC.
Punon në 12V për siguri dhe përmban një listë të gjerë të pjesëve duke përfshirë një motor induksioni ‘squirrel cage’.
Një manual i eksperimenteve përfshin të gjitha teoritë.
Lexoni manualin për të mësuar më shumë rreth këtij kompleti shumë të dobishëm dhe shikoni se si thjeshton studimet e induksionit elektromagnetik.
Mësuesit mund të mësojnë gjithashtu.

A manual of experiments includes transformer theory, magnetising currents, electromagnets, electric motor and generator theory, losses in iron circuits, eddy currents, synchronous motors, mutual induction, effect of laminations and much more.
Students can wind their own transformer coils to produce outcomes and so on.

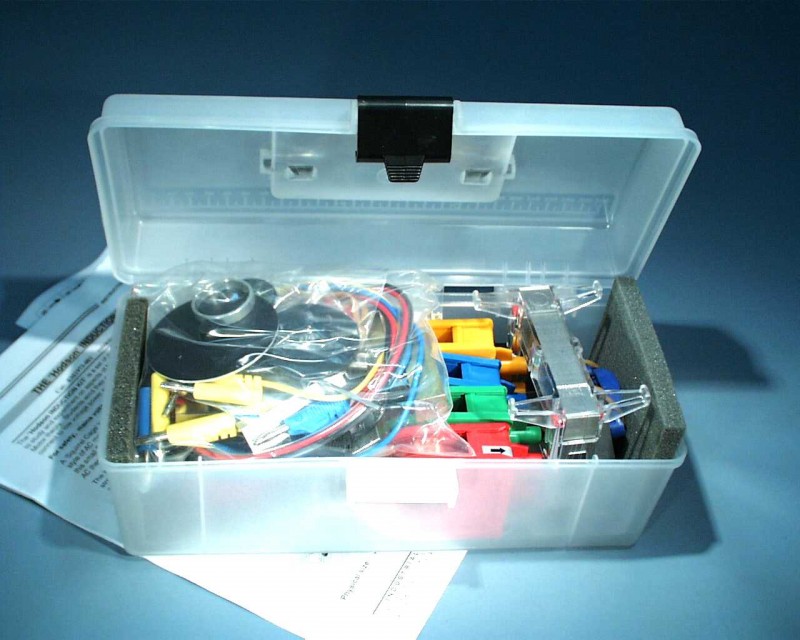

KIT CONTENTS:
• 1 set “U” laminations, 16mm thick, mounted in plastic frame.
• 1 set “I” laminations, 16mm thick, mounted in plastic frame.
• 1 pce. Plastic frame, empty, to carry rotor and to hold iron cores and devices.
• 2 pcs. Plastic frame, small, to hold short cores and to carry disc axle.
• 1 pce. Iron bar, 16×16 square x 96mm long.
• 2 pcs. Iron bars, 16×16 square x 48mm long.
• 4 pcs. Coil bobbins for winding coils. Red, Yellow, Blue, Green. With coil fronts.
Red coil is pre-wound 300 turns and connected to 4mm sockets as the primary coil.
Another coil is pre-wound to 600 turns as a secondary and connected to 4mm sockets.
• 1 pce. Handle for holding bobbins during winding.
• 1 pce. Induction motor, AC, laminated frame, rotor, ball races and end shields.
• 1 pcs. Reel of insulated wire, large, for winding all coil bobbins.
• 1 pce. Instruction sheet and experiment manual.

The following items are in a separate zip bag:
• 1 set Cables, 1 pair red/black, 2 each yellow and blue, with stackable banana plugs.
• 1 set 3 red / 3 black Alligator clips.
• 4 pcs. Sockets, brass with lugs and screws, to make 4mm sockets for permanent coils.
• 1 pce. Rotor, plastic (2 halves), to carry small magnets, for studying basic AC motor theory.
• 2 pcs. Small cylindrical permanent magnets for placing into plastic rotor.
• 2 pcs. Bar magnets, 75mm long, for induction experiments.
• 1 pce. Disc, aluminium, with rubber centre, for eddy current experiments.
• 1 pce. Axle for supporting and spinning aluminium disc.
• 1 pce. Ring of aluminium for ‘Thompson’s Ring’ demonstration.
• 8 pcs. Elastic bands to stretch tightly between holder legs to pull core together.
• 1 pce. Plate, aluminium, to carry ‘Hodson’ DC motor assembly.
• 1 pce. Magnetic compass for determining polarity of magnetic poles.
