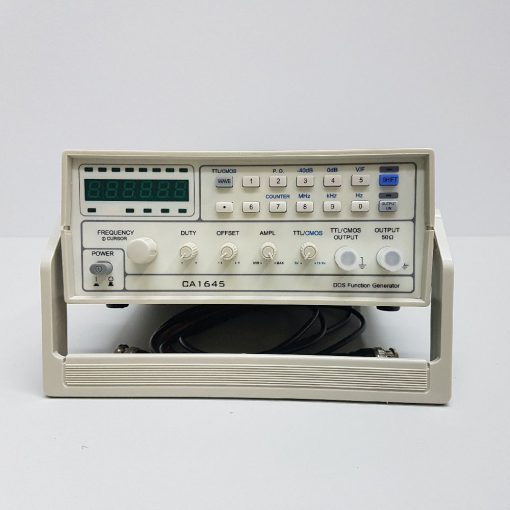

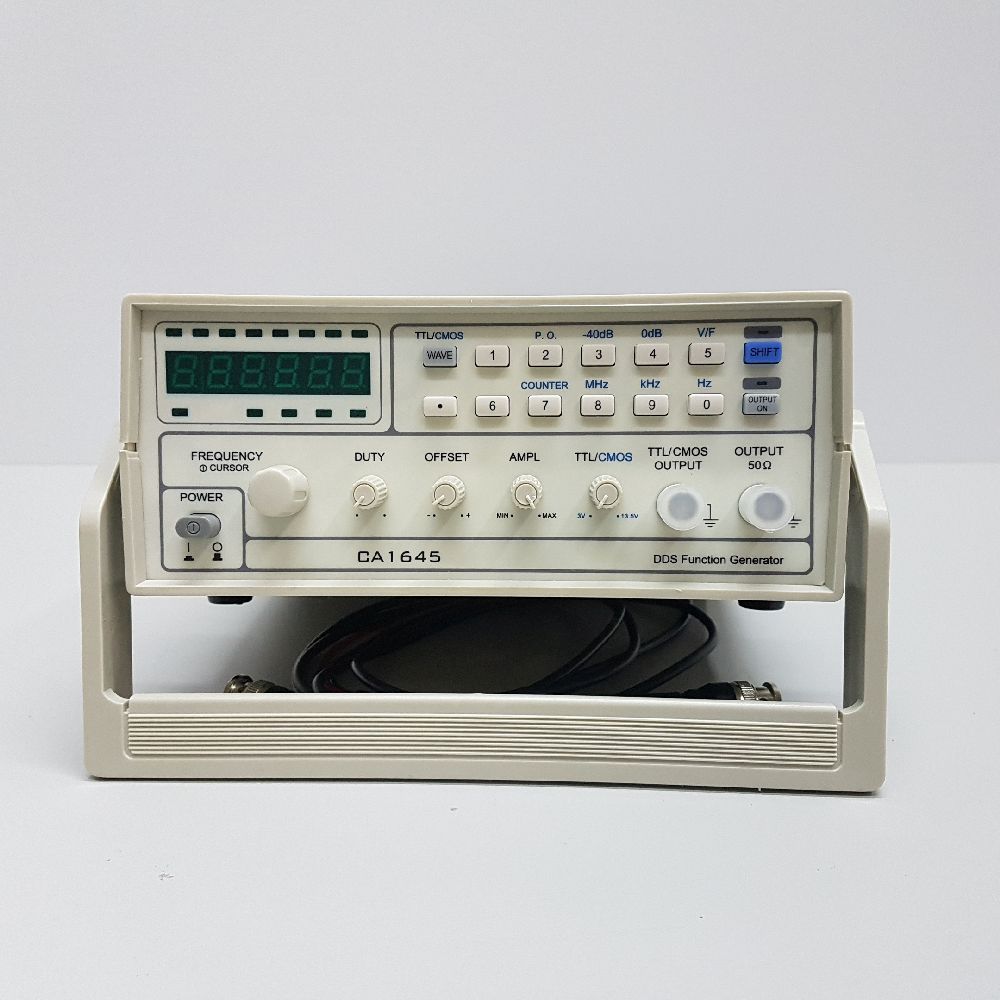

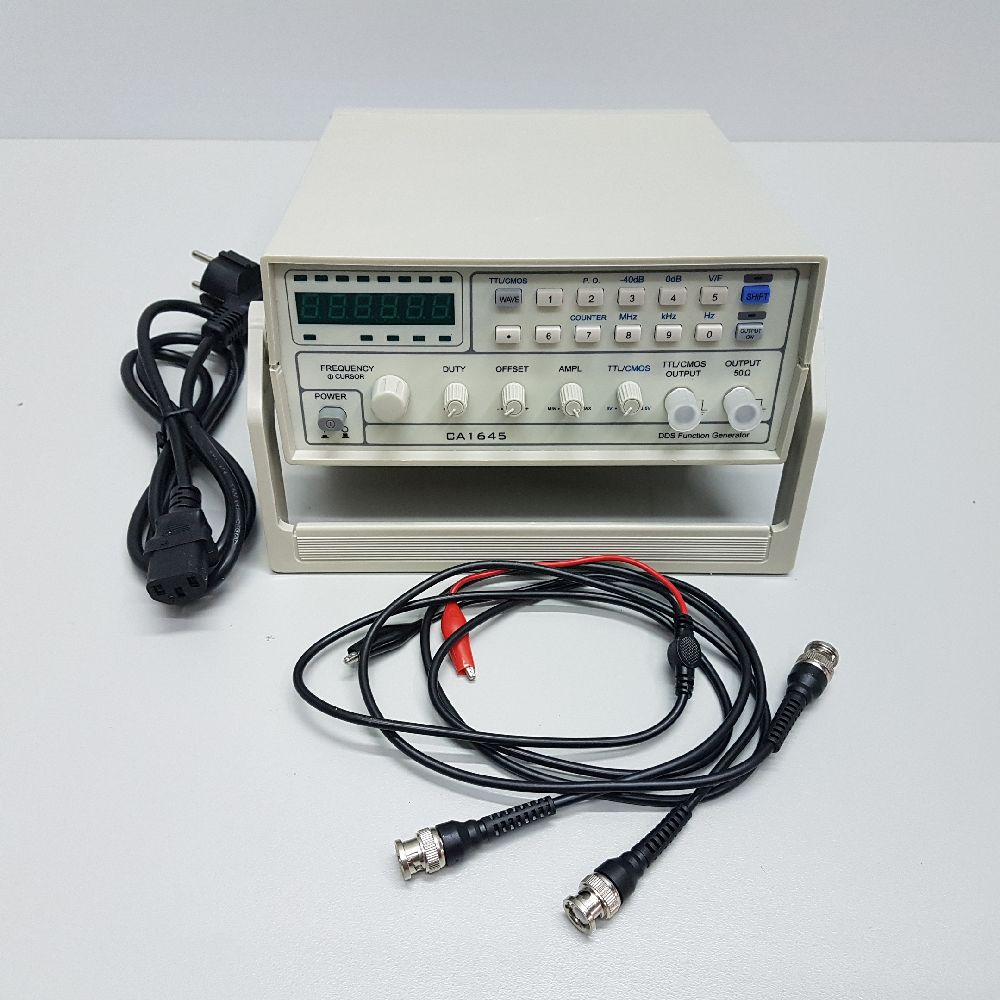

DDS Function Signal Generator 220V (EM004)

DESCRIPTION

This series uses the latest Direct Digital Synthesis (DDS) technology to generate stable, high resolution output frequency. The DDS technology solves several problems encountered in traditional function generators.

Main Features:

Performance:

High Resolution using DDS technology
High Frequency Accuracy: ±20ppm
Low Distortion: <0.6%
High Resolution: 100mHz
Features:

Digital user interface with 6-digit LED display
Various output waveform: Sine, Square and Triangle
TTL/CMOS output
Amplitude Control
-40dB attenuation
Duty control
Variable DC level Control
Output On/Off Control
Voltage Display
Output Power
Counter
Interface:

Main Signal output
TTL/CMOS output
Specifications:

Main
Output Waveforms Sine, Square and Triangle
Amplitude 20Vp-p (no Load)
Impedance 50Ω±10%
Attenuation 0dB/40dB
DC offset ±10V (no Load)
Duty Circle range 20%-80% (Square Wave)
Display 6 digit LED

Frequency
Sine wave 0.1Hz-3MHz/5MHz/8MHz
Square wave 0.1Hz-2MHz (Valid Range)
Triangle wave 0.1Hz-1MHz (Valid Range)
Resolution 100mHz
Frequency stability ±1×10-6
Frequency error ±5×10-6

Square Wave
Distortion <0.6% (Foundation Frequency: 1kHz) TTL/CMOS Amplitude >3 Vp-p
Fan Out 20TTL Load
CMOS Level 3.5-13.5 Vp-p

Options
Power output Output Power >10W (4ΩLoad)
Output Wave Sine Wave
Frequency Range: 20Hz-40kHz
Counter Measure Frequency range: 10Hz-60MHz
Measure voltage range: 0.2V-20V
Error Range: ±1×10-4

Others
Power supply 220-240VAC±10%, 50Hz±5%
Size 265(W) x 110(H) x 300(D) mm
Weight 1.5kg
