Photometers, WINLAB® (PL042)

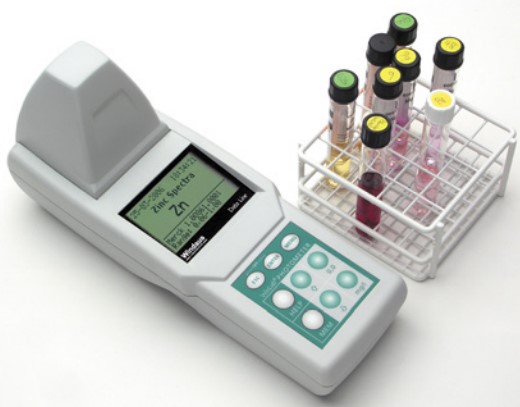

LED-photometer with: • Big spectral range from 380 to 810 nm • High, photometric precision • Flexibly usable for many reagent types, e.g. HACH, Merck, M+N, Tintometer, CALDUR • Method memory for 150 calibration curves • Operation instruction for reagents can be read directly from the display • Complete documentation per data logging • Includes software for documentation • Robust, tested new housing, waterproof • Backlit display • Display cover made of glass, scratch-free
With new spectral range

Due to 9 LED and filter combinations, such as:
380 – 430 – 470 – 500 – 520 – 560 – 610 – 700 – 810 nm, a wide spectral range is available.

Free reagent selection
For many manufacturer reagents, e.g. HACH, Merck, M+N, Tintometer, CALDUR. Calibration curves can be saved with the included software.

Method memory
With up to 150 calibration curves of different reagents.
Simple operation and much information from the display
The display informs you on every step on the right reagent dosage, each step can be read
from the display!

High precision
The electro-optical accuracy within a wide range of extinctions from -0.500 to 2.000 lies
at ±1.5%.

Display
Back back-illumination and display cover made of scratch-proof mineral glass, the digitsize for the measurement display is 12 mm.
Furthermore, the display informs on date, time, measurement steps, article no. of the reagents used and of course all operational steps.

Data logging and interface
To save up to 1000 data records.

GLP-conform.
The following is documented per data record: date / time / wavelength / reagent used /
measurement result / measurement number / location of measurement.
The serial wireless, waterproof IrDA-interface with USB adapter makes a trouble-free
data transfer possible, also on-location!

Software
The software included in the scope of delivery offers many possibilities. This way, either
calibration curves of the reagents can be selected, which are saved in the photometer
memory, or brand-new, e.g. self-created curves! Theoretically, the photometer can work
with only one calibration curve or with up to 150.

Housing
The photometer is mostly waterproof, especially in the cuvette duct! Here, the photometer
is vastly protected against intruding liquids. The IrDA-interface is also waterproof!

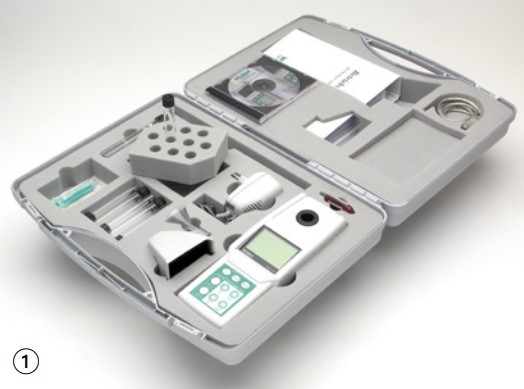

WinLab standard plastic transport case 80 03 02540
includes: WinLab Data Line Photometer with batteries – charger, software, 10 round cuvettes 16 mm, 2× sample tubes for dilutions, funnel, cleaning brush for cuvette, cuvette
rack made of rigid foamed plastic, 2× syringes, IrDA-USB-adapter, cable 1 m long for
USB interface
