Digital Oscilloscope DIY Kit (PL055)

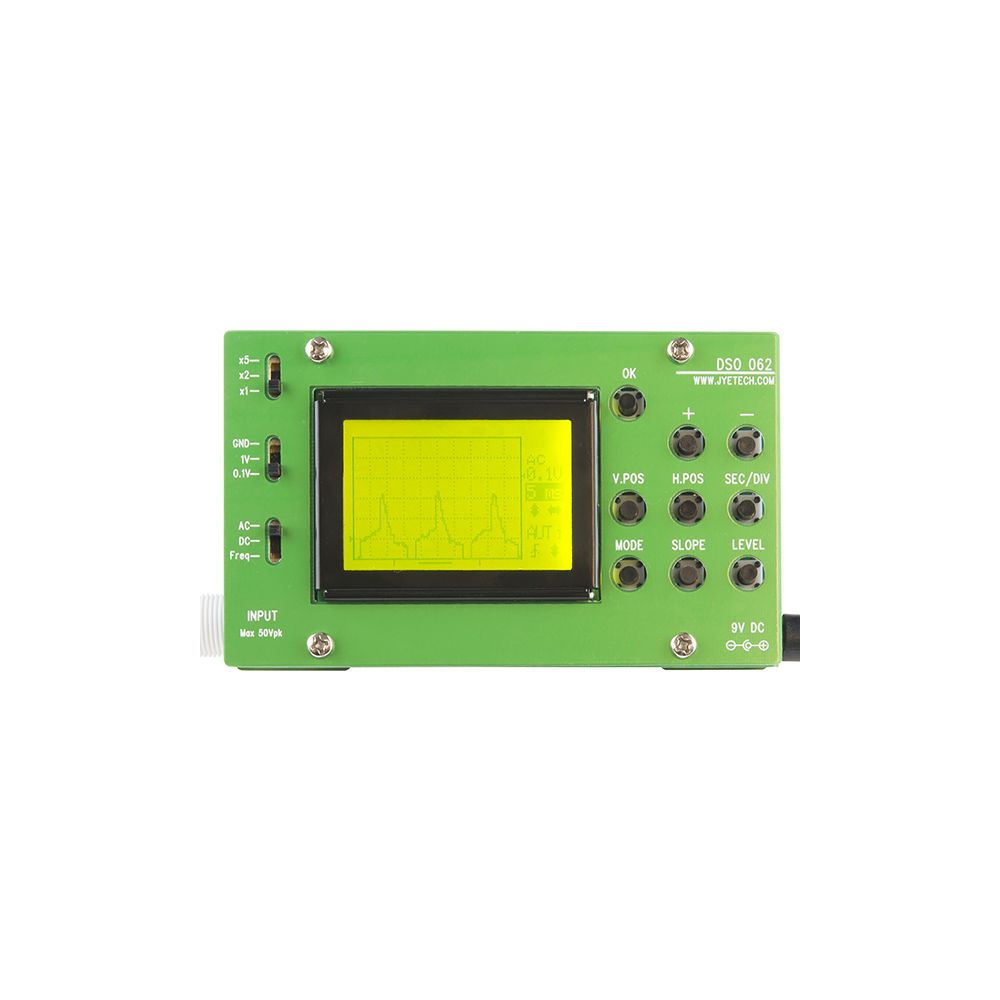

The Digital Oscilloscope DIY Kit includes everything you need to build your very own, fully functional, digital oscilloscope. Once you’ve got it up and running, the oscilloscope features up to 5M samples/second, 8-bit resolution, up to 50Vpp max input voltage, and more!

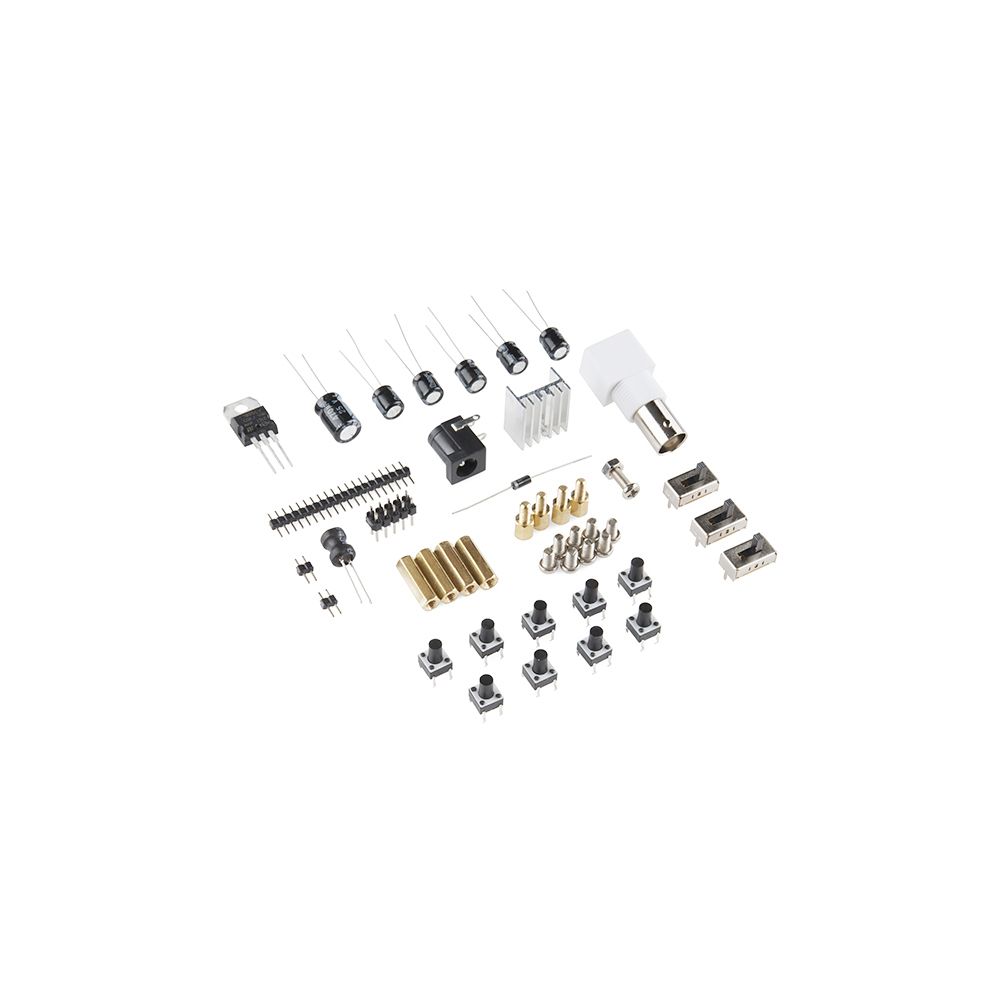

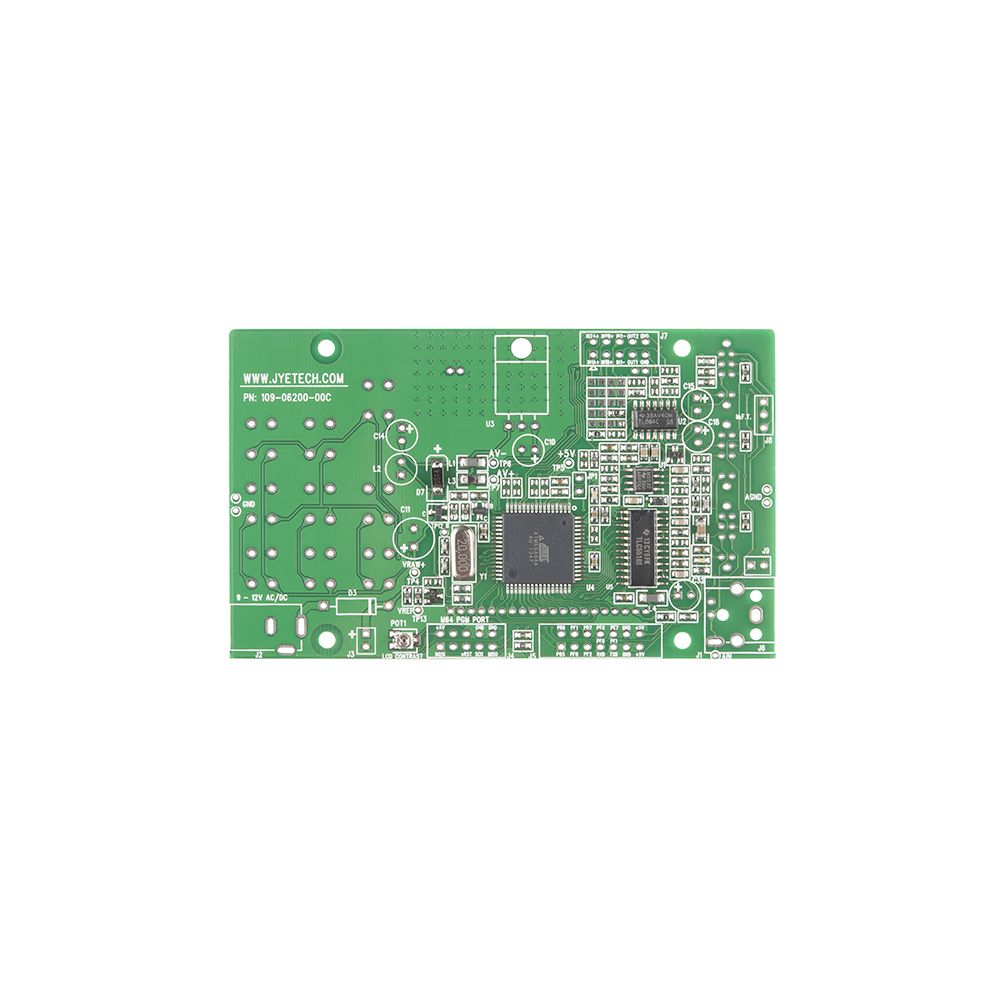

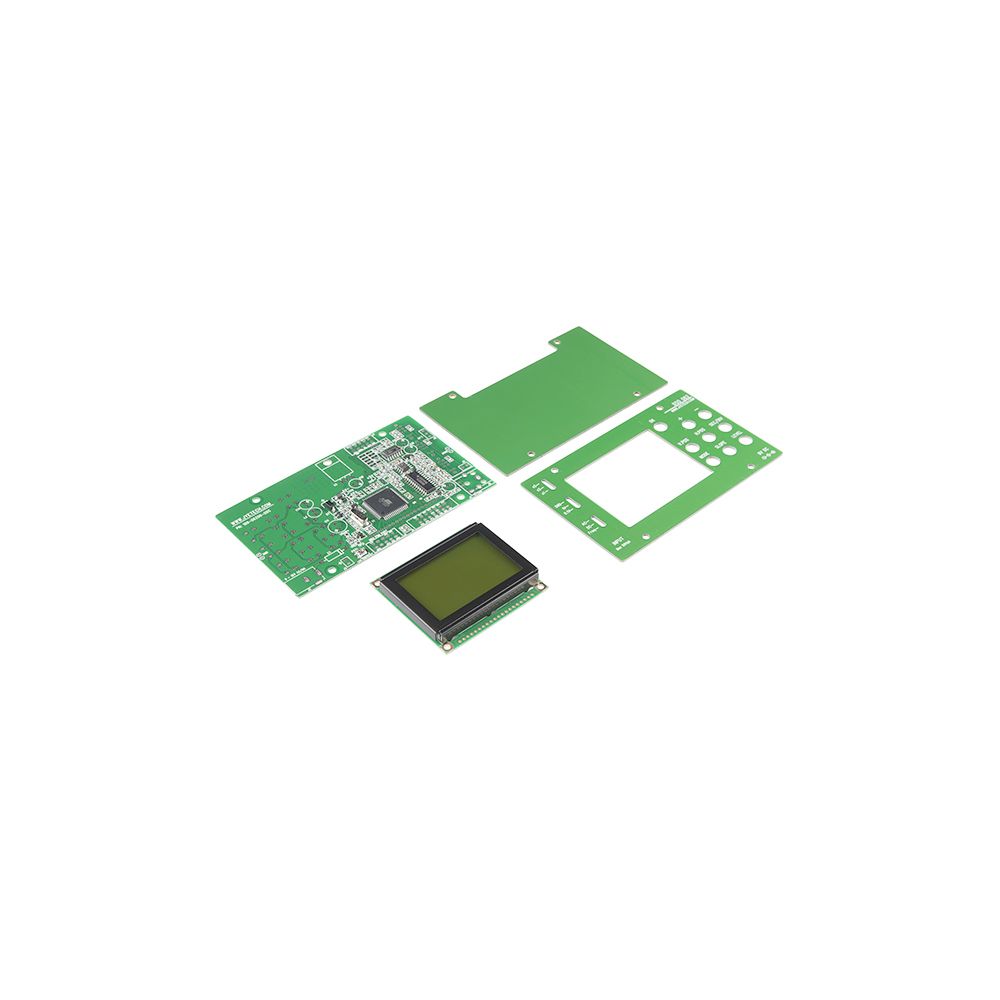

This kit includes a semi-populated PCB, with all of the surface mount components already soldered on for you. The components left for you to solder are all through-hole. This is on the higher end of difficulty as far as through-hole kits go.

A 9V power supply is required to run the oscilloscope, supply is not included
